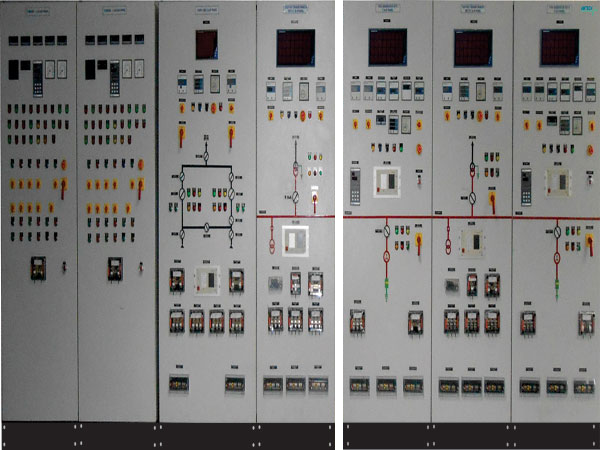

Transformer Protection System
Click on image to enlarge


The multifunction numeric relay that provides differential protection, over current, Instantaneous over current, restricted earth fault, zero sequence earth fault current, negative sequence over current, breaker failure and over/under voltage protection. Facility to synchronize relay time from SCADA, monitoring and control, sequence-of-events recording, fault reporting. The system having Communication Protocols IEC61850, Modbus, Rear Ethernet.


    Following protections are integrated in protection relay.

  • Three-phase instantaneous over current protection - 50
  • Three-phase time over current protection - 51
  • Directional over current protection - 67
  • Breaker failure protection - 50BF
  • Transformer Differential Protection - 87
  • Under voltage protection - 27
  • Over voltage protection - 59
  • Negative sequence over current protection - 47
  • Loss of sensing voltage protection - 60FL
  • Over frequency protection - 81O
  • Under frequency protection - 81U
  • Rate of change of frequency protection - 81R
  • Over excitation - 24

Digital & Analog I/O

  • Digital Inputs - 11
  • Digital Outputs - 8
  • Analog Inputs - 8
  • Analog Outputs - 8

Event Recording and Communication

  • 1000 Event recorder
  • USB Communication
  • RS-485 Modbus
  • Ethernet
  • IEC 61850
