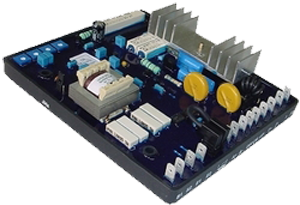

The AVC63-12 and AVC125-10 voltage regulators are designed to control the output of a brushless excited synchronous generator. They are designed to be very rugged, are perfect for a variety of applications, and are especially suitable where the generator is installed in a harsh environment. They can accept supplemental control inputs for utility paralleling applications where a VAR/PF control and Over/Under Excitation Limiter are used. These regulators are extremely flexible and offer jumper selection provisions for single- or three-phase sensing, 1 or 2X V/Hz, and can accept 1 or 5 Amp CTs. The power stage can accept a frequency range of 50-400Hz, and the sensing can be configured for 50/60 or 400Hz.

FEATURES

• ± 0.5% voltage regulation
• 0.5% accuracy up to 20% THD (harmonic associated with 6 SCR loads)
• Outputs of 63Vdc @ 12Adc and 125Vdc @ 10Adc from a PWM output stage
• 1 or 2X V/Hz limiting (jumper selectable)
• Single- or three-phase average sensing (jumper selectable)
• Paralleling input from 1 or 5A CT secondaries
• Nominal sensing inputs of 120, 240, 50/60Hz or 400Hz
• Power input from shunt connections or PMGs operating at 50 to 400Hz
• Accessory input
• Over excitation shutdown

OUTPUTS

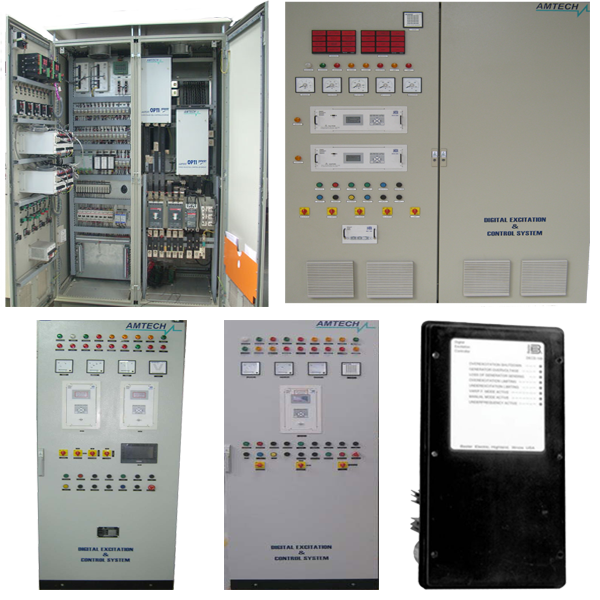

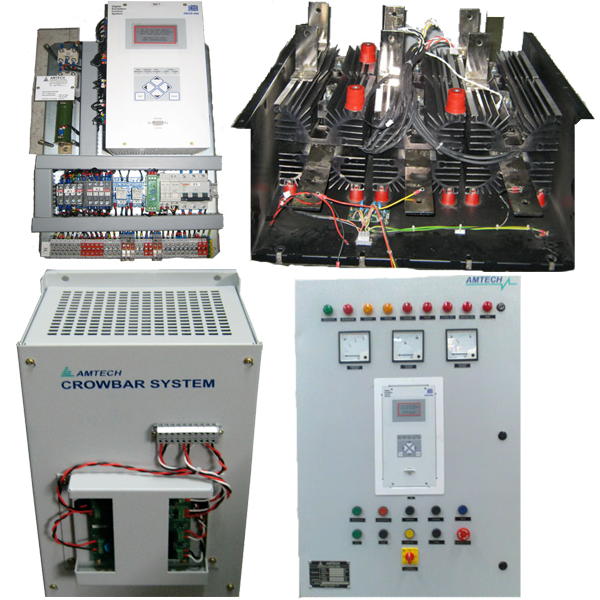

• Brush-less Digital Excitation & Control system for 500KW to 60MW Synchronous Machine
  • Compact Excitation System up to 63Vdc, 7Adc (Suitable up to 5MW or Below Synchronous Machine)
  • 1 Auto and 1 Manual Digital Excitation System ranges up to 125Vdc, 15 & 20Adc.
  • 2 Auto and 2 Manual Digital Excitation System ranges up to 125Vdc, 15 & 20Adc.
• Digital Static Excitation & Control system for 500KW to 200MW Synchronous Machine
  • 1 Auto and 1 Manual Digital Excitation System ranges from 20Adc to 2500Adc
  • 2 Auto and 2 Manual Digital Excitation System ranges from 20Adc to 2500Adc
  • 1 Auto and 1 Manual Digital Excitation System ranges above 2500Adc
  • 2 Auto and 2 Manual Digital Excitation System ranges above 2500Adc

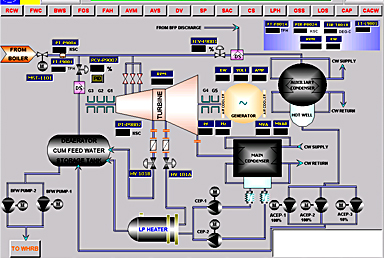

We are providing customized solutions in the field of power plant automation. We serve for control systems and protection systems as well as complete solution for power plant operations. We are providing SCADA WITH Distributed Control System (DCS) where all power plant operation can be controlled, monitored and operated. Relay, Governor, Excitation and auxiliaries controls command. We have also given solutions for GRID PF control, Event recoding and monitoring.
